Mini slip rings OD 6.5mm Miniature conductive slip ring cap type signal collector ring UAV handheld pT-stabilized camera
Discover the reliable 6.5mm miniature slip ring for UAVs, handheld PT stabilized cameras, and robotics. Durable, compact cap-type signal collector ring with consistent conductivity and 360° rotation support.
Key points
- Ultra-compact 6.5mm OD design for tight spaces
- Cap-type structure ensures secure and stable connection
- Highly conductive materials for minimal signal loss
- Ideal for UAVs, PT stabilized cameras, and handheld gimbals
- Durable construction for long-term performance in rotating systems View product presentation

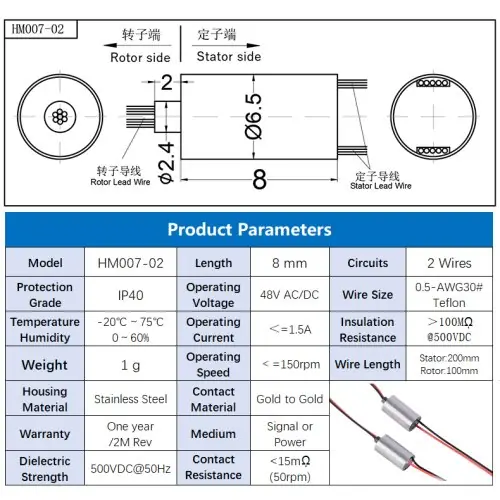

Color: (2CH 1A) OD6.5L8mm
France
Similar products
Product presentation
Ultra-Compact Slip Ring for Seamless Rotation – Power Your UAV and Gimbal Systems Reliably!
This high-performance miniature slip ring features a compact 6.5mm outer diameter design, making it ideal for space-constrained applications such as UAVs, handheld gimbal systems, and PT (pan-tilt) stabilized cameras. Constructed with precision-engineered conductive materials, this cap-type signal collector ring ensures reliable and uninterrupted electrical connectivity during continuous rotation. With excellent durability and low resistance, it supports stable transmission of power and signals in demanding environments. Perfect for robotics, surveillance, and aerospace applications requiring seamless 360-degree rotation without wire twisting.
| Brand Name Eayonsy, Eayonsy |
| High-concerned chemical None |
| Origin Mainland China |
| is_customized Yes |
| Model Number HM007-N, HM007-N |
| Place of Origin Guangdong China |
| Type Slip ring |
| Total Circuits N rings1A/ring |
| Working Life 3 million revolutions |
| Rated Voltage 0~120VAC/VDC |
| Rotating Speed Max 300RPM |
| Working Temperature -20℃~65℃ |
| Operating Humidity 75% RH |
| Lead Length Standard 200mm |
| Dielectric Strength 100VAC,50Hz,60s |
| Protect Grade IP51 |
