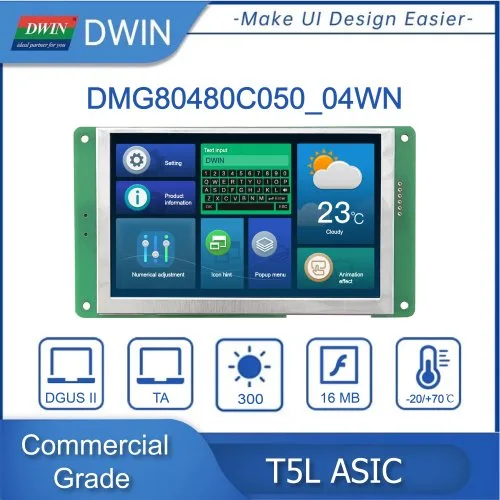

DWIN 5 Inch 800*480 for Arduino Nano Display RS232/TTL HMI Touch Panel ESP32 Screen,LCD Module UART TFT Monitor DMG80480C050_04W
Upgrade your DIY projects with the 5-inch 800x480 DWIN touch screen LCD module. Compatible with Arduino Nano, ESP32, and UART/TTL/RS232 interfaces. Ideal for HMI, robotics, and smart devices.
Key points
- High-resolution 800x480 TFT display for sharp visuals
- Resistive touch panel for responsive interaction
- Compatible with Arduino Nano, ESP32, and other microcontrollers
- Supports UART, TTL, and RS232 communication protocols
- Ideal for building custom HMI interfaces and IoT devices View product presentation
Color: No touch
France
Similar products
Product presentation
Bring Your Projects to Life with a Crystal-Clear 5-Inch Touchscreen Display!
This high-resolution 5-inch TFT LCD touch screen module features an 800x480 pixel display with vibrant colors and crisp visuals, making it ideal for DIY electronics projects. Designed for seamless integration with Arduino Nano, ESP32, and other microcontrollers, this display supports multiple communication protocols including UART, TTL, and RS232. The built-in resistive touch panel enables intuitive user interaction, perfect for creating custom HMI (Human-Machine Interface) applications. With a compact design and reliable performance, this DWIN DMG80480C050-04W module is suitable for smart home devices, industrial controls, robotics, and more. Easy to connect and program, it offers developers a powerful tool for enhancing their embedded systems with graphical interfaces.
| Brand Name DWIN |
| Origin Mainland China |
| Display Mode None |
| High-concerned chemical None |
| Resolution 800*480, 800*480 |
| Model Number DMG80480C050_04W |
| Type TFT |
| is_customized Yes |
| Size 5.0 inch |
| Color 262K Color |
| Touch panel type Capacitance touch panel |
| Active Area (A.A.) 108.0mm*64.8mm |
| LCD Technique IPS |
| Power supply voltage 4.5~5.5V |
| Power supply current (mA) 300mA@5V |
| Working Temperature -20/+70 |
| Communication RS232/TTL |
| Connector socket 10Pin_1.0mm FCC Socket |
| Application Commercial grade |
| Quality standard CE |
