10 in 1 USB Type-C Voltmeter Ammeter Capacity Tester DC 4.5~36V 0-8A Multiple Fast Charging Protocols Automatic Detection
Discover the all-in-one USB Type-C tester with voltage, current, and capacity measurement, supporting PD, QC, AFC, FCP, and auto-detection of fast charging protocols. Ideal for tech professionals and DIY users.
Key points
- 10-in-1 multifunctional USB Type-C tester

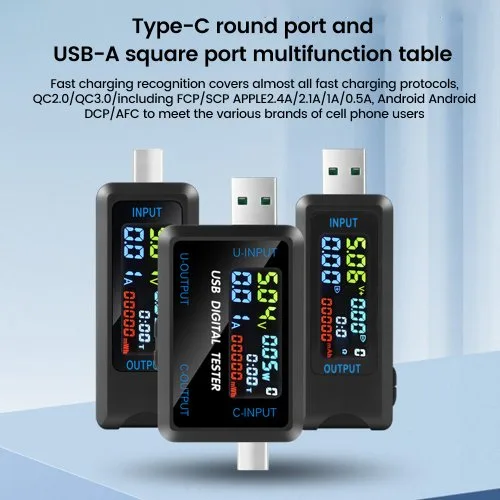

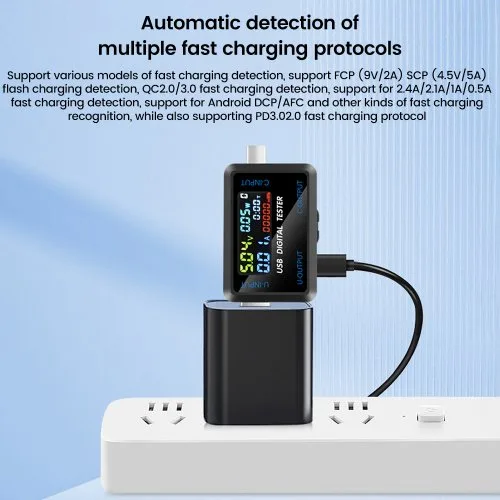

- Auto-detects fast charging protocols (PD, QC, AFC, FCP)
- Accurate DC voltage (4.5–36V) and current (0–8A) measurements

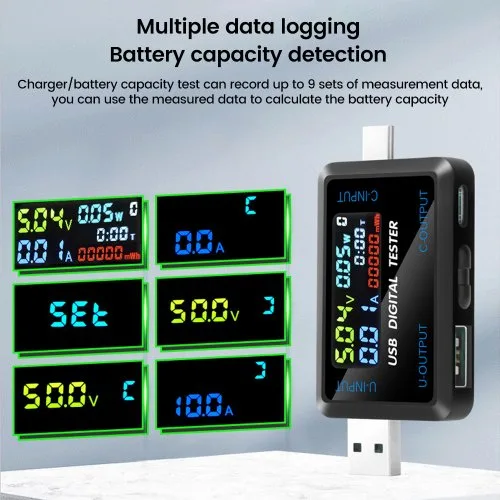

- Built-in battery capacity testing for power banks and devices

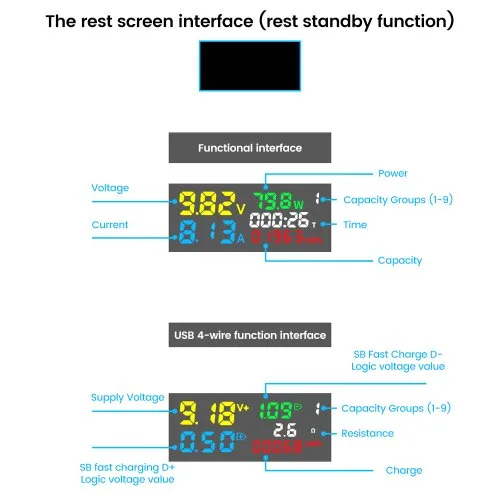

- Clear LCD display with real-time monitoring View product presentation
Color: USB
France
Similar products
Product presentation
All-in-One USB Power Master: Test, Measure, and Diagnose with Precision!
This advanced 10-in-1 USB Type-C tester is a versatile tool designed for electronics enthusiasts, technicians, and DIY hobbyists. It combines multiple functions into one compact device, including voltage measurement (DC 4.5V to 36V), current measurement (0-8A), battery capacity testing, and support for various fast charging protocols such as PD, QC, AFC, FCP, and more. With automatic protocol detection, this tester ensures accurate readings and compatibility with most modern devices. The built-in LCD screen displays real-time data clearly, making it easy to monitor charging performance, diagnose power issues, and test battery health. Perfect for troubleshooting USB-powered devices, evaluating chargers, or verifying the efficiency of your power bank or laptop charger.
| Brand Name Aideepen |
| Battery Included No |
| DC Voltage DC 4.5~36V |
| Origin Mainland China |
| Operating Mode Auto Range |
| High-concerned chemical None |
| DIY Supplies Electrical |
| AC Voltage DC 4.5~36V |
| Display Type Digital Display |
| Measuring Resistance Range 1-999.9Ω |
| Certification CE |
| Measuring Capacitance Range 0-99999mAh |
| Model Number Voltage and current meter |
| Is Smart Device No |
| Operating Temperature -10~60℃ |
| Current measurement range 0-5A/0-8A |
| Power measurement range 0-150W |
| Temperature measurement range 0-80℃ |
| Energy Accumulation Range 0-99999mWh |
| Timing Time 999 hours 59 minutes |
| Input Interface 5A High Current USB Interface/Type-C Interface |
| Output Interface USB/Type-C |
| USB D+ Voltage Range 0~2.99V |
| USB D- Voltage Range 0~2.99V |
| Refresh Time >500ms/time |
| Measurement Rate Approximately 0.5 times/second |
| Display Screen IPS True Color Digital LCD Display |
| Self-consumption Current <0.02A |
| Operating Humidity 10~80%RH (non-condensing) |
| Operating Pressure 80~106kPa |
| USB Style Dimensions 77.6*27*11mm |
| Type-C Style Dimensions 73.6*27*11mm |
| USB+Type-C Style Dimensions 76.9*38*11mm |
